ALPHA Wall mounted LED Display

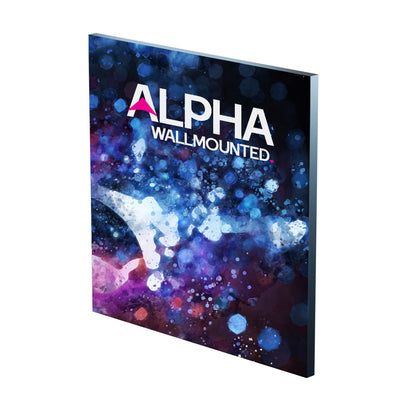

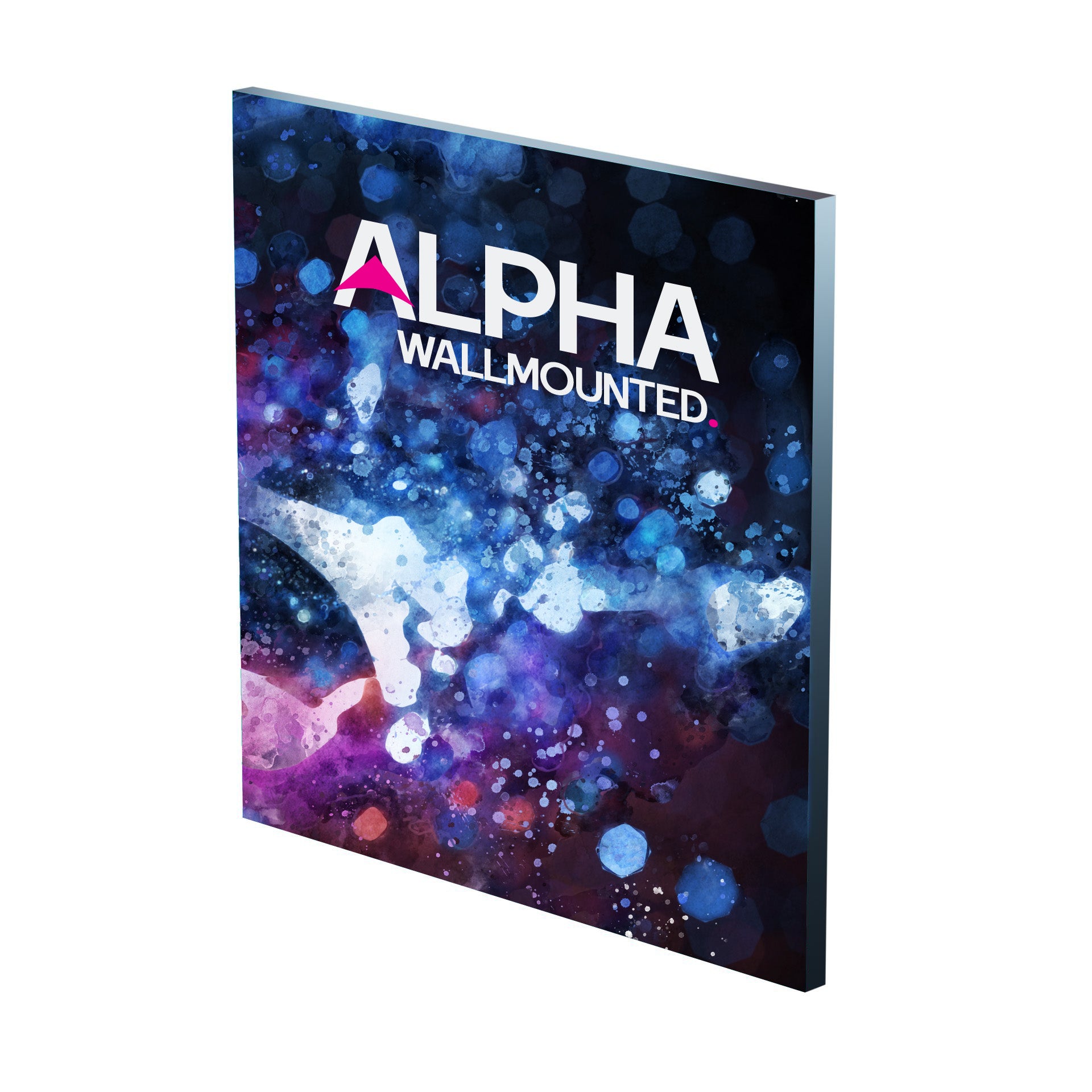

ALPHA Wall Mounted LED Display

The ALPHA Wall Mounted LED Display combines a 75mm profile with advanced edge-lit LED technology to deliver vibrant, evenly illuminated graphics with outstanding visual impact. Available in a range of standard sizes up to 3m x 2m, it’s ideal for creating bold focal points in retail, hospitality, corporate, and branded interior environments.

Constructed from durable aluminium, the ALPHA system is energy-efficient, long-lasting, and designed for professional, high-traffic applications. High-impact SEG fabric graphics provide rich colour reproduction and can be easily swapped without removing the frame from the wall, making updates fast and efficient.

Single-Sided Display Configuration
Recommended setup:
• 1 x front SEG graphic
• 1 x blockout liner to rear

Smart Design, Simple Assembly
Single-sided, high-impact illuminated display system built for ease of installation and long-term use.

Assembled Dimensions – ALPHA 75 (1000 x 1000mm)

Width: 1000 mm
Height: 1000 mm
Depth: 75 mm
Weight: 8.1 kg

Format Options

• Hardware and 1 x Graphic

` Replacment Graphic

Media Type

• Backlit polyester
• Backlit blockout liner (non-printed)

Graphic Template

ALPHA 1000MM (W) X 1000MM (H) GRAPHIC

Product Specifications

Material: Aluminium
Profile Width: 75mm
Profile Colour: Anodised Silver (custom White or Black available)

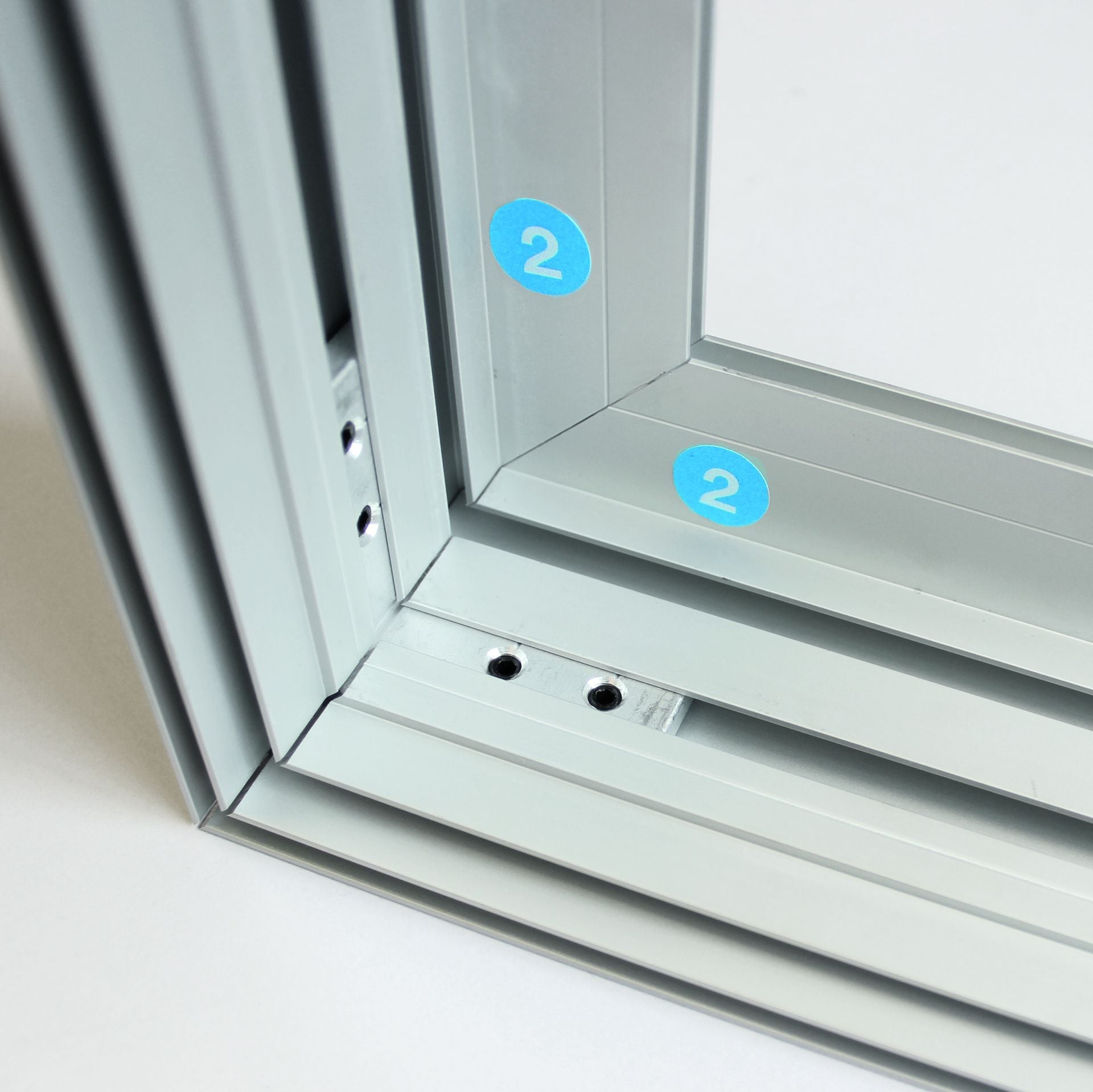

Assembly: Connector system with Allen key
Mounting: Wall mounted
Graphic Area: Single-sided
Graphic Attachment: Silicone Edge Gasket (SEG) 3 mm

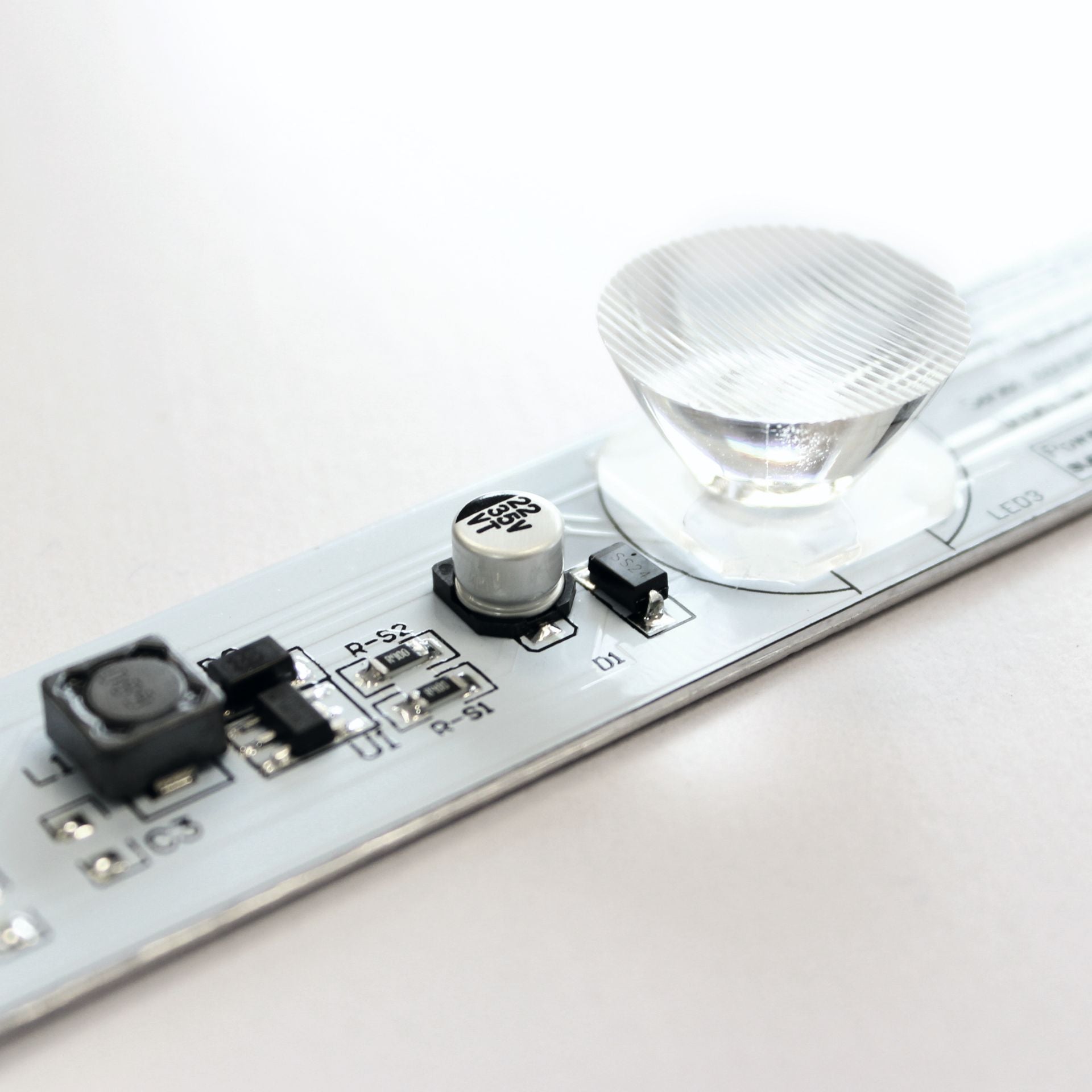

LED System: Edge-lit with pre-installed LED lighting
